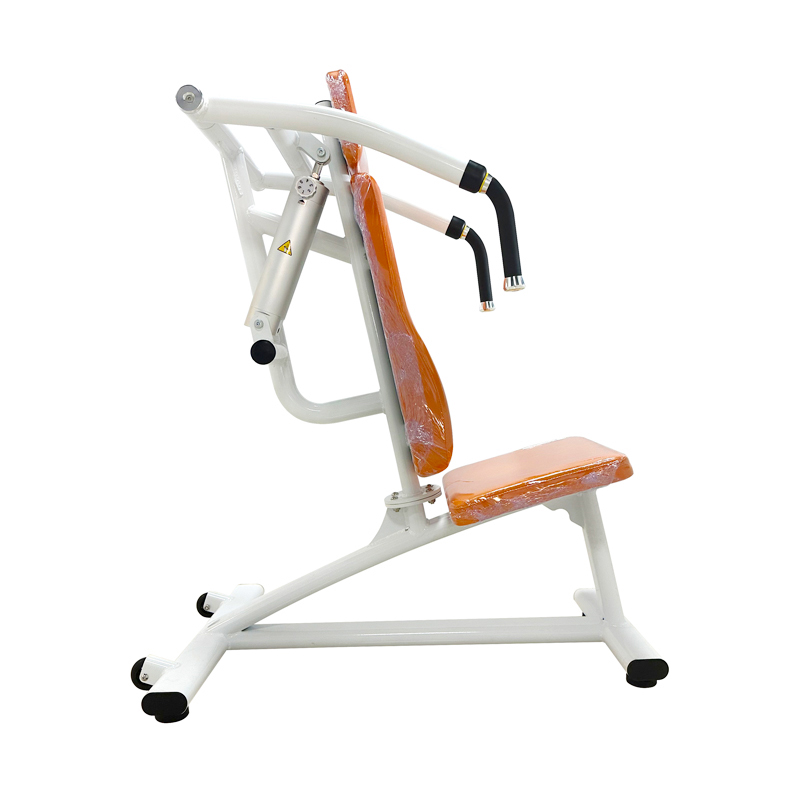

LKN03 Shoulder Lat Pulldown and Back Trainer

2024 - 12 - 25

LKN03 Shoulder Lat Pulldown and Back Trainer.jpg

Product Dimensions:
Product Dimensions: 1025 × 670 × 1250mm
Packaging Dimensions: 1045 × 690 × 710mm
Net Weight/Gross Weight: 43kg / 49kg
Maximum Weight Capacity: 150kg
Volume: 0.75 cubic meters
Technical Parameters:
Material: Q235 steel, 40802.5t oval tube, φ50*2.5t round tube
Coating: Electrostatic spray coating in white, black, silver-gray, with custom color options
Welding: Equipment uses integrated welding technology
Seat Cushion: Multi-layer PVC leather with foam process for contact areas, available in orange, blue, or custom colors
Exercise Principle: Hydraulic cylinder cycle principle
Hydraulic Resistance Mode: 6, 8, 10, or 12 levels (optional)
Testing Report: Complies with GB17498.1-2020 inspection standards
Oil Cylinder:
Resistance Value:
Hydraulic Cylinder: Bidirectional rebound
Stroke: 180 mm
Usage Instructions:
1st Level: Pull 83N / Push 84N
2nd Level: Pull 118N / Push 124N
3rd Level: Pull 218N / Push 258N
4th Level: Pull 437N / Push 538N
5th Level: Pull 802N / Push 1052N
6th Level: Pull 1265N / Push 1619N
12th Level: Pull 2000N
Specific Functions:

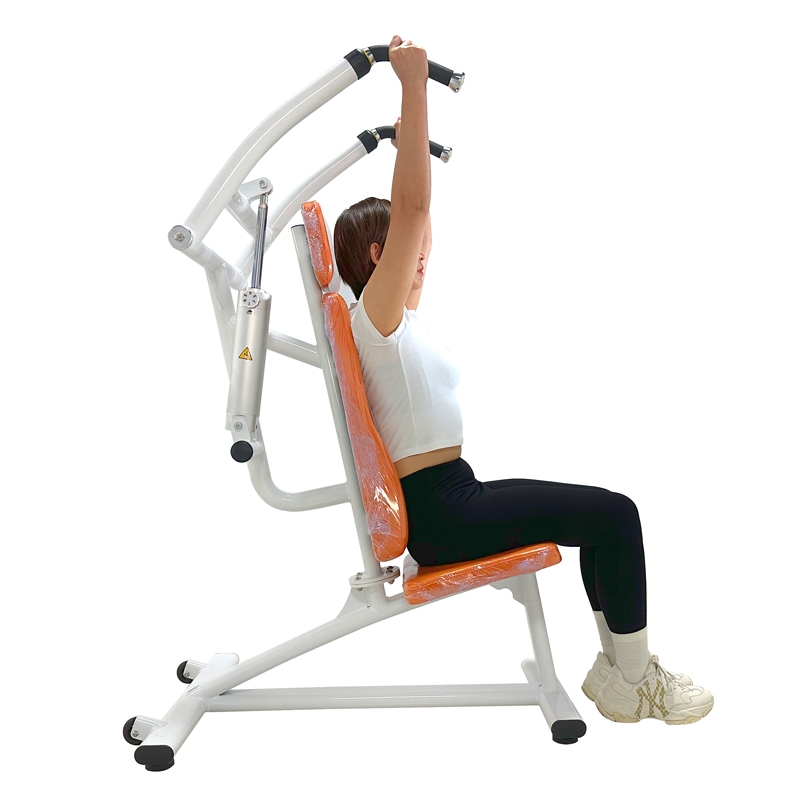

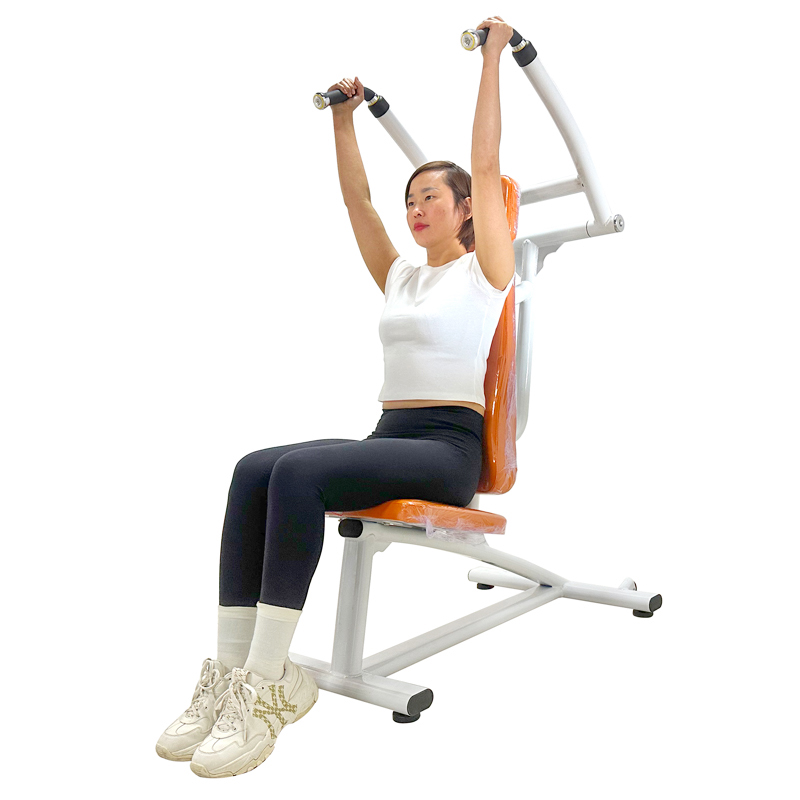

"First, adjust the hydraulic cylinder knob to set the resistance to a level that suits you. After sitting on the equipment, ensure your back is against the backrest. Slowly move your arms upward and perform a smooth, rhythmic motion back and forth."
Features:

  1. Improve joint mobility and prevent or delay muscle atrophy in the limbs.
  2. Increase muscle strength in the affected limb and reduce any causes of increased muscle tension.
  3. Provide targeted training for specific muscles, enhance venous return, and prevent deep vein thrombosis in the lower limbs.
  4. Enhance muscle strength, improve joint mobility, alleviate muscle tension, and increase joint stability.
  5. Promote the recovery of proprioceptive sensation.

Exercised Muscle Groups:

  1. Reduce the likelihood of overload injuries.
  2. Adjust according to the patient's pain and fatigue levels.
  3. Provide multiple speed options for testing and training.
  4. Reduce swelling caused by tremors.
  5. Decrease pressure on joints as the movement speed increases.

Solutions:
Deltoid
Triceps
Biceps
Target Audience:
People with the purpose of fitness, weight loss, and health improvement.
Especially suitable for middle-aged and elderly individuals, particularly women.
